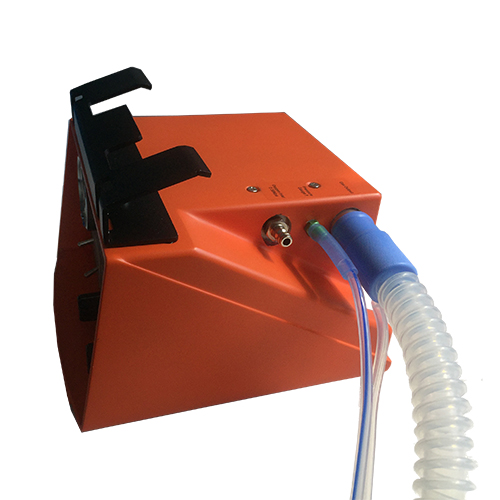

Transport Ventilator JX10 Plus
product image
product image
product image

Transport Ventilator JX10 Plus

JX10 Plus

Description:

Used for first-aid, ambulances, emergency treatment and patients' transport in hospital.

Main Features:

1. Volume controlled method, used for adults and children over 5kg;

2. Yellow, blue and green, the three-color blocks distinguish parameter ranges for suitable crowd;

3. Oxygen concentration have two settings: Air Mix/No Air Mix; Saving more oxygen;

4. Minute ventilation indication, setting parameters conveniently and quickly;

5. Real time airway pressure indication;

6. Equipped with multifunctional handle, which is convenient for ventilators to be fixed on various stretchers and sickbeds;

7. Rechargeable internal Li-battery with large capacity; Stand-by time: >10hours;

8. Adopt the latest integrated metal gas path structure, saving more gas with better compliance;

9. Anti-seismic, waterproofed, unbreakable, anti-splashed;

10. Simple function, easy to operate, especially for first aid;

Technical Parameters:

Ventilation mode: CMV

Minute Volume: 3~20L/min

Respiratory Rate: 5 ~ 40bpm

Oxygen Concentration: Air Mix, No Air Mix

Over Pressure Relief: no more than 72hPa

Working Time of Internal Li-battery: >10hours

Indicators: Inspiration, Exhalation, Low Battery Voltage, Charge, Airway Pressure

Product Specification:

Size dimension of .mainframe: length * height * width 220*220*170mm

Weight of mainframe: 3kg

Service Conditions:

AC: 100V-240V.

Gas Source: 0.28~0.6MPa (pressure) Medical Oxygen

Gas Supply: Oxygen cylinder, Central oxygen supply.

Basic configuration:

Ventilator (with multifunctional handle), lung simulator, charger (optional multinational standards), headband, pressure-reducing valve (optional British/national standards), high pressure tubes, breathing circuits, mask.
